Quality Control
At EPI, we pride ourselves in producing the highest quality geomembrane systems available, a prominent aspect of which is quality control. From materials to installation, we have a number of resources available to assist with material selection and specifications. Click on the links on the left sidebar to view our Quality Control Manual and other useful quality control data.
​
Quality Control Manual for PVC and UltraTech Factory Fabrication March 2021
​
Quality Control Manual for Polyolefin Factory Fabrication June 2021
​
The Wolschon Test
​
EPI began experimentation on an accelerated testing procedure for PVC chemical fusion welds in 1991. The motivation for this experiment was the ASTM requirement of forty hours of laboratory acclimation of all samples before uniform testing can proceed. Like all fabrication processes, product quality control requires built-in quality. This requires measurement and control during the production phase to correct any deviation from control limits. Also, test results must be reported immediately to the fabricating technician in order to continue production or take corrective action.
​
To make sure that all test results are processed and reported utilizing identical techniques, this uniform ASTM 40 hour acclimation procedure is still being used at EPI for confirmation that seam strength surpasses industry expectations.
​
​
​
​
​
​
​
​
​
​
However, within this forty hour period, the processes of fabrication continues. In fact, packaging, shipping, and sometimes even installation could possibly continue without confirmation of specification conformance. By the time these results are reported, it may be difficult to take corrective action.
​
Most accelerated test methods involve elevated temperature or oven aging prior to testing. EPI eliminated from the accelerated test any oven aging or necessary cooling time. A sample is removed from the actual factory fabrication process and, after only five minutes, two specimens are tested for peel strength per ASTM D 7408. At EPI, we call this procedure as the Wolschon Test, named after its developer Mark Wolschon, EPI Quality Control Manager. The simplicity of the test removed the uncontrolled variables in the oven aging test procedure.
​

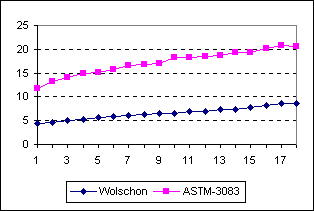

The Wolschon Test data is then correlated with standard ASTM D 7408 tests. A direct correlation resulted when the peel strength of the Wolschon Test specimens were compared to specimens from the same sample tested after forty hours. The graph illustrates typical results for a group of eighteen samples.
​
Procedures in place now can help correct problems proactively before production continues.Test results are all analyzed in EPI's statistical process control program which has verified a continuous improvement in seam strength since implementation of Wolschon testing.
To learn more about the Wolschon test, call 800-OK-LINER today!
